HVAC expansion in a home addition is defined as the process of sizing, selecting, and integrating heating and cooling capacity to serve newly constructed living space without compromising the comfort or efficiency of the existing home. The role of HVAC expansion in a home addition goes far beyond running a new duct to the nearest register. It requires an ACCA Manual J load calculation, a clear-eyed look at your existing system’s capacity, and a deliberate choice between extending ductwork, adding a ductless mini-split, or installing a dedicated system. Get it right and your new space stays comfortable year-round. Get it wrong and you face short-cycling, humidity problems, and higher energy bills across the entire house.
What HVAC system options exist for home additions?
Four primary approaches cover most home addition scenarios, and each carries a different cost, complexity, and efficiency profile. Knowing which one fits your project starts with understanding what each actually does.

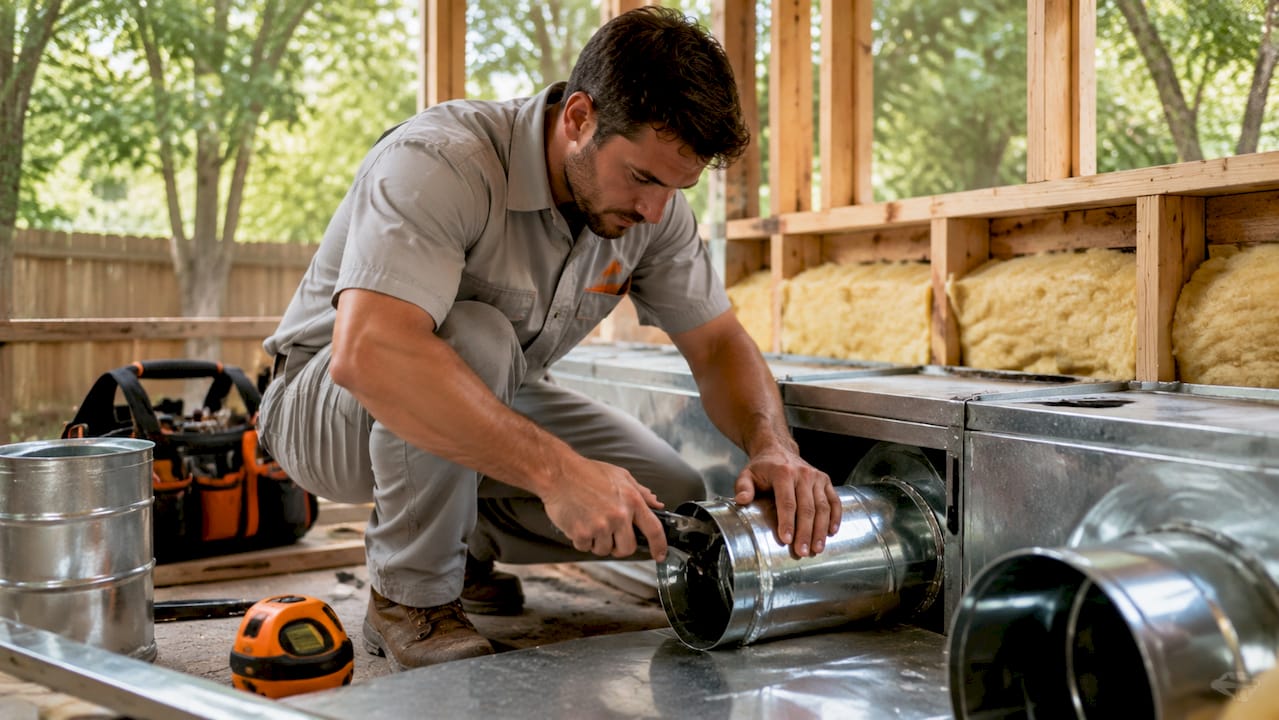

Extending existing ductwork
Extending your current forced-air system is the most familiar path. A contractor taps into existing trunk lines, runs new branch ducts, and adds registers in the new space. Duct extension costs typically run $1,500–$4,000. The catch is that your existing furnace or air handler must have enough spare capacity to condition the added square footage. Older systems rarely do. Extending ductwork blindly often reduces airflow throughout the whole house, leaving both the addition and the original rooms underserved.
Ductless mini-splits
A ductless mini-split mounts a compact air handler directly in the new room and connects to an outdoor compressor through a small conduit. For additions under 600 square feet, this is frequently the best choice. Mini-splits carry SEER2 ratings of 18–22, compared to 14–16 for most ducted systems. That efficiency gap matters because duct losses alone can waste 15–25% of cooling energy in hot climates. Installation costs run $3,500–$7,000, but the energy savings and independent temperature control often justify the premium.
Dedicated split systems and package units
When an addition exceeds 600 square feet or sits far from the main mechanical room, a dedicated split system or package unit becomes worth considering. Dedicated split systems cost $8,000–$15,000, while package units run $6,000–$12,000. These options add the most installation complexity, but they leave your original system completely untouched and give the new space full independent control.
Two-zone retrofit
A two-zone retrofit uses motorized dampers and a multi-zone thermostat to let a single furnace and air conditioner serve the addition independently. Two-zone retrofits cost approximately $2,000–$3,500 and work well when your existing system has verified spare capacity. This approach avoids a second outdoor unit while still giving the new room its own thermostat.
The right choice depends on four factors:
- Square footage of the addition
- Verified capacity of your existing system
- Condition and layout of current ductwork
- Your preference for independent temperature control
Pro Tip: Before any contractor quotes ductwork extension, ask them to pull the nameplate data from your existing air handler and compare it against the total square footage you will be conditioning after the addition. If the numbers are close, a mini-split or dedicated system is the safer bet.

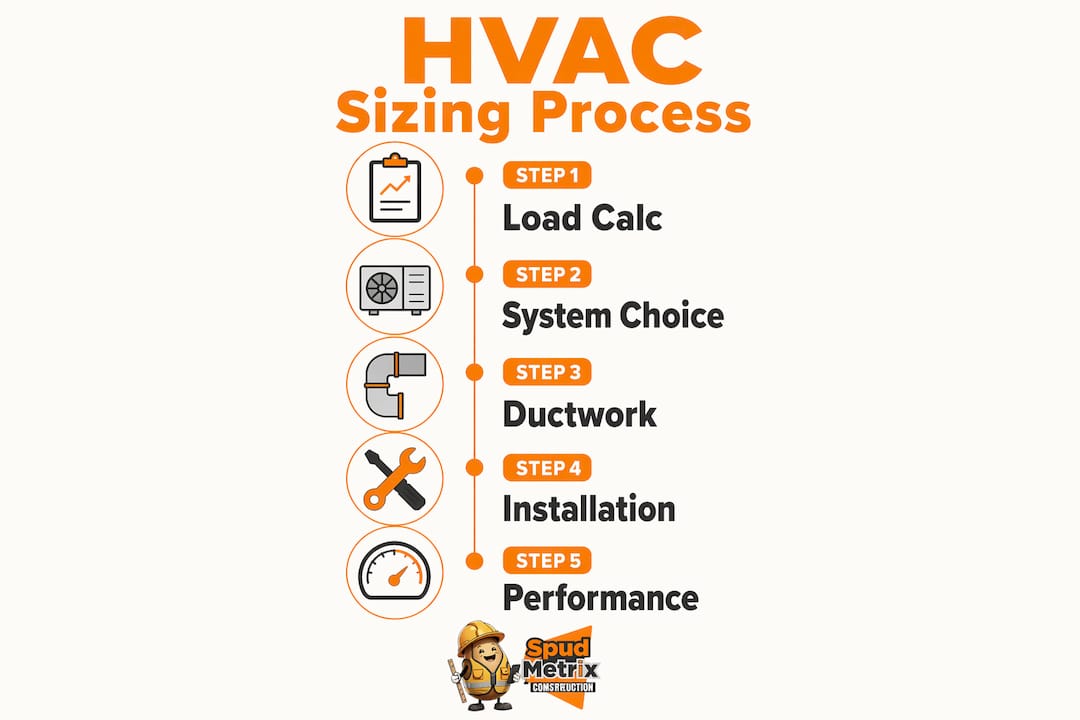

Why does proper HVAC sizing matter for home additions?
Sizing is the single most consequential decision in any HVAC installation for a home addition. An undersized system runs constantly and never reaches setpoint. An oversized system short-cycles, which means it turns on, hits the thermostat target quickly, and shuts off before it has time to remove humidity from the air.
What a Manual J load calculation covers
A Manual J load calculation is the industry standard method for determining exactly how much heating and cooling a space needs. It accounts for:
- Square footage and ceiling height
- Insulation values in walls, floors, and ceilings
- Window area, orientation, and glazing type
- Local climate data, including design temperatures
- Internal heat gains from occupants and appliances
The ACCA Quality Installation standard mandates a Manual J recalculation whenever conditioned space increases. Skipping it is not a shortcut. It is a guarantee of future problems.
Why rules of thumb fail
The “500 square feet per ton” rule is the most common shortcut contractors use, and it is consistently wrong. Using a simple square-footage rule ignores insulation quality, window placement, and building orientation. A sunroom addition with large south-facing windows in Houston needs far more cooling capacity per square foot than an interior bedroom addition with no exterior glazing. Treating them the same produces a system that fails within a few years.
Right-sized HVAC systems run in long, steady cycles. Those cycles are what actually remove humidity from the air and maintain consistent temperatures. Oversized systems short-cycle, increase energy bills, and fail to control humidity. The goal is always the smallest practical capacity that meets the calculated peak load.
Consequences of getting sizing wrong
Poor sizing shows up fast. Short-cycling wears out compressors prematurely. High humidity creates mold risk. Rooms that never reach setpoint push homeowners to override thermostats, which drives up bills. A proper Manual J load recalculation costs a few hundred dollars. Replacing a failed compressor or remediating mold costs far more.
How do installation details affect long-term HVAC performance?
Choosing the right system and sizing it correctly are necessary steps, but installation quality determines whether the system actually performs over time. Two details that contractors often treat as minor are expansion joints and thermal expansion valves.
Flexible connections and expansion joints
HVAC systems generate heat and vibration during operation. Metal components expand and contract with every cycle. Inadequate flexible connections cause refrigerant leaks, pump failure, and reduced efficiency over the system’s life. Properly selected hoses and expansion joints absorb that movement and protect the connections between components.
Key installation practices to verify with your contractor:
- Flexible connectors on all supply and return connections at the air handler
- Vibration isolators under outdoor compressor units
- Expansion loops in refrigerant lines that run long distances
- Proper support spacing on ductwork to prevent sagging and air leaks
Proper HVAC component flexibility is not optional maintenance prep. It is a baseline installation requirement that directly affects how long the system runs without service calls.
Thermal expansion valves
A thermal expansion valve, or TXV, regulates how much refrigerant enters the evaporator coil based on real-time load conditions. TXVs reduce compressor cycling and improve humidity control by adapting to temperature swings rather than running at a fixed refrigerant flow rate. In a home addition where load conditions vary by season, orientation, and occupancy, a TXV-equipped system delivers noticeably more consistent comfort than a fixed-orifice system.
Pro Tip: When reviewing quotes for a new mini-split or heat pump for your addition, confirm the unit includes a TXV. Some entry-level units use a fixed orifice instead. The TXV adds a modest cost but pays back in efficiency and fewer service calls over the system’s life.
How does HVAC expansion affect comfort, energy costs, and home value?
The benefits of HVAC expansion done correctly show up in three places: daily comfort, monthly energy bills, and long-term property value.
Comfort throughout old and new spaces
A properly sized and installed system maintains consistent temperatures and humidity levels across both the original home and the new addition. Without it, the addition becomes the room everyone avoids in summer or winter. Zoning, whether through a two-zone retrofit or independent mini-split thermostats, lets occupants set different temperatures for different areas. A home office addition used during the day does not need to be conditioned to the same level as a bedroom at night.
Energy cost impact
The efficiency difference between system types is real and measurable. Mini-splits avoid duct losses that can waste 15–25% of cooling energy, which matters significantly in Houston’s climate. A right-sized system also runs longer, steadier cycles rather than short bursts, which is the more efficient operating pattern. Homeowners who extend undersized ductwork to a new addition often see their entire home’s energy bills rise because the original system now works harder to compensate.
Effect on home value
Properly permitted and installed HVAC systems contribute to appraised home value. A home addition in Houston that includes a code-compliant, independently controlled HVAC system is a stronger selling point than one that relies on an overloaded original system. Buyers and appraisers both notice when a new addition has its own thermostat and verified permits. Cutting corners on HVAC during an addition can reduce the return on the entire project.
Key benefits of proper HVAC expansion:
- Consistent temperatures in both old and new spaces
- Lower monthly energy bills through right-sized, efficient equipment
- Independent zoning for flexible comfort control
- Code compliance that supports permitting and resale value
- Reduced risk of system failure and expensive repairs
Key Takeaways
Proper HVAC expansion in a home addition requires a Manual J load calculation, the right system choice for the space size, and quality installation details that protect long-term performance.
| Point | Details |
|---|---|
| Manual J is non-negotiable | Always require a full load calculation before selecting or sizing any HVAC system for an addition. |
| Mini-splits lead for small additions | Additions under 600 sq ft benefit most from ductless mini-splits due to higher SEER2 ratings and no duct losses. |
| Sizing errors cost more than the fix | Short-cycling from oversized systems causes humidity problems, compressor wear, and higher bills. |
| Installation details matter | Flexible connections, expansion joints, and TXVs protect system reliability and efficiency over time. |
| Permits protect your investment | Code-compliant HVAC installation supports appraisal value and avoids problems at resale. |
What I have learned from watching HVAC expansion go wrong
The most common mistake I see homeowners make is treating HVAC as an afterthought. They spend months planning the layout, finishes, and structural details of their addition, then hand the HVAC question to whoever gives the lowest bid in the final week before construction starts. That sequence almost always produces a bad outcome.
The second most common mistake is trusting a contractor who proposes extending existing ductwork without first pulling the specs on the current system. I have seen additions where the original furnace was already running at 95% capacity before the new space was added. Tapping into that system did not just fail to heat the addition. It degraded comfort in the original home too.
My honest advice: get the HVAC scope in writing before construction begins. The contract should specify which system type will be installed, the calculated load it is sized to meet, and which permits cover the work. If a contractor cannot provide those details upfront, that is a clear signal to keep looking. Quality HVAC installation for a home addition is not the place to save money. The systems you install today will run for 15–20 years. The cost difference between doing it right and doing it cheap is small compared to a decade of higher bills and service calls.
— Brandon
Planning your home addition HVAC with Spudmetrix
Adding conditioned space to your home is one of the most significant investments you will make. Getting the HVAC scope right from the start protects that investment and keeps your family comfortable for years.
Spudmetrix works with Houston homeowners on home addition projects that include proper HVAC planning, permitting, and installation coordination from day one. Every project starts with a free in-home consultation and a detailed written estimate that covers HVAC scope clearly. Before you sign anything, review what a solid remodeling contract should include for HVAC work. Spudmetrix makes sure nothing gets left out.
FAQ
What is a Manual J load calculation?
A Manual J load calculation is the ACCA-standard method for determining the exact heating and cooling capacity a space requires, accounting for insulation, windows, climate, and square footage. It is required before sizing any HVAC system for a home addition.
How much does HVAC installation for a home addition cost?
Costs range from $1,500–$4,000 for duct extensions to $3,500–$7,000 for ductless mini-splits and $8,000–$15,000 for dedicated split systems, depending on the approach and addition size.
Can I extend my existing HVAC system to cover a home addition?
You can extend existing ductwork only if your current system has verified spare capacity. Without a load calculation confirming available capacity, duct extension typically reduces comfort throughout the entire home.
What HVAC system works best for a small home addition?
A ductless mini-split is the best choice for additions under 600 square feet. Mini-splits carry SEER2 ratings of 18–22 and avoid the 15–25% duct energy losses that reduce efficiency in ducted systems.
Does adding HVAC to a home addition increase home value?
A properly permitted, independently controlled HVAC system in a home addition supports appraised value and makes the addition more attractive to buyers. Unpermitted or overloaded HVAC work can reduce the return on the entire addition project.
